Yealink collaboration device CS10-D

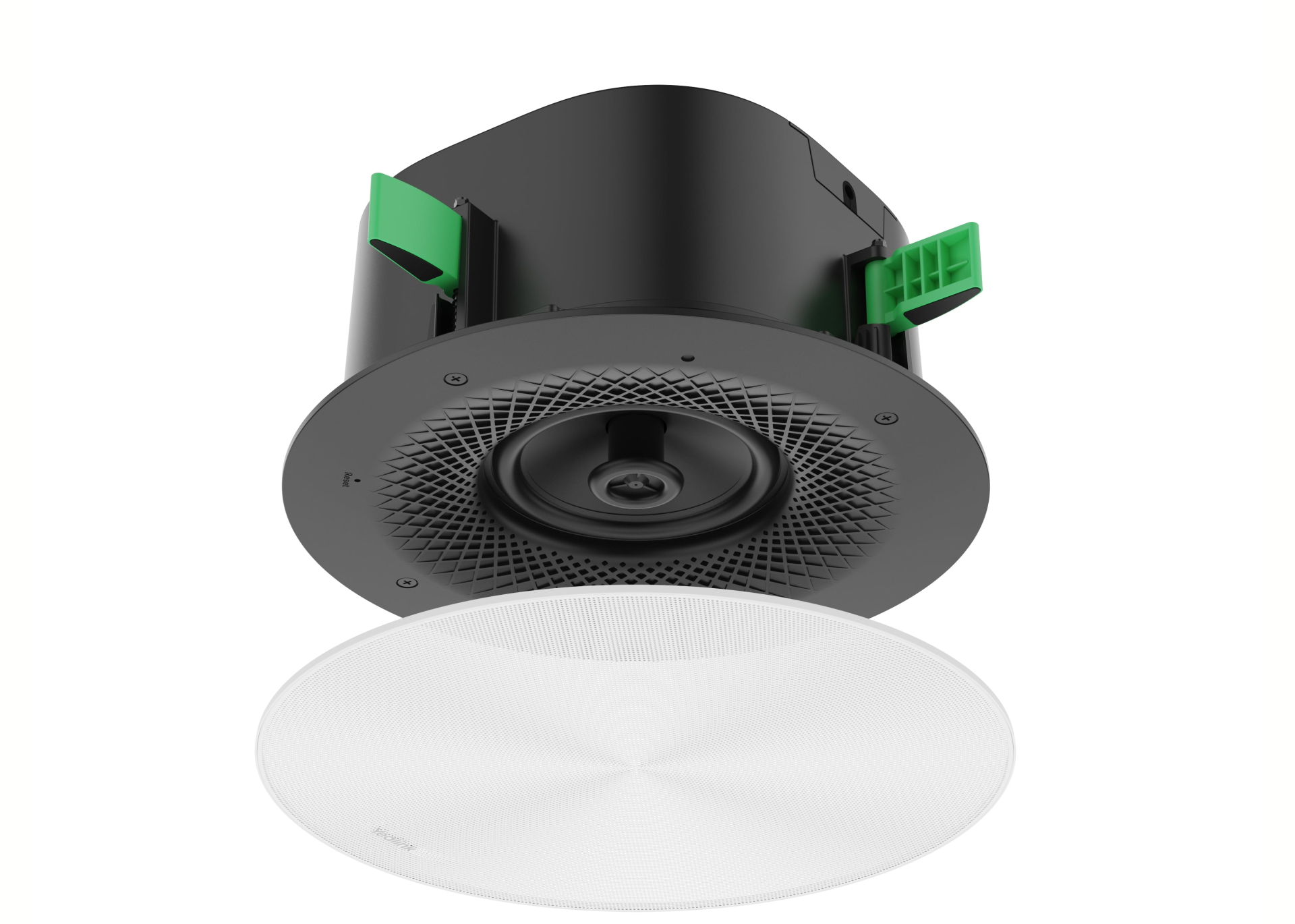

Yealink CS10-D Dante Version – Professional Network Ceiling Speaker

The Yealink CS10-D Dante Version is a professional-grade Dante-enabled ceiling speaker designed for modern meeting rooms, classrooms and enterprise AV environments. With PoE+ power, integrated amplifier and networked audio compatibility, it delivers high-quality, evenly distributed sound while blending seamlessly into any ceiling layout. Pair the Yealink CS10-D with the Yealink MVC960 Video Conferencing System for a complete, Dante-ready Microsoft Teams Room solution.

Key Features

• Dante Audio Integration: Native support for Dante network audio systems for flexible AV routing and digital connectivity.
• Built-in Amplifier: Simplifies installation by eliminating the need for external amplifiers or speaker cables.
• PoE+ Powered: Single-cable connection for audio, control and power via IEEE 802.3at PoE+ standard.
• Wide 120° Audio Coverage: Provides balanced sound across the entire room for improved clarity.
• Professional Sound Quality: 2-way coaxial driver (5.7” woofer + 1.1” tweeter) ensures natural voice reproduction.

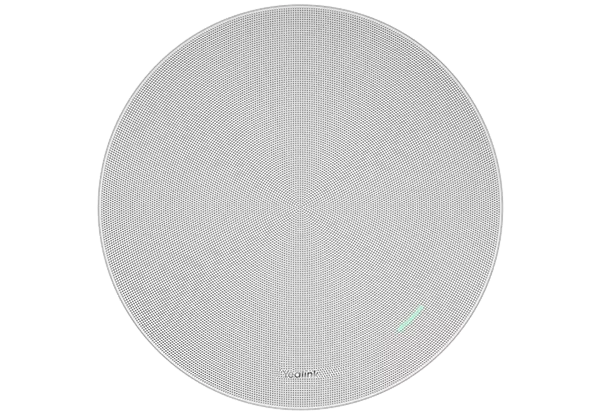

• Elegant, Low-Profile Design: Paintable magnetic grille blends discreetly into any ceiling aesthetic.

Technical Specifications

• Speaker Type: 2-way coaxial ceiling loudspeaker
• Driver Configuration: 5.7″ (145 mm) woofer + 1.1″ (28 mm) tweeter
• Frequency Response: 100 Hz – 20 kHz (-6 dB)
• Sensitivity: 88 dB @ 1W/1m | Max SPL: 99 dB @ 20W/1m
• Nominal Coverage: 120°
• Network Interface: 1 × RJ-45 Dante port
• Power Supply: PoE+ (IEEE 802.3at, Class 4)
• Nominal Impedance: 8 Ω
• Dimensions: Ø 294 mm × H 125.8 mm
• Finish: White paintable grille (optional black version)

Why Choose the Yealink CS10-D Dante Version?

• Delivers clear, intelligible speech ideal for conferencing and hybrid meetings.
• Seamless integration with Yealink MVC series and other Dante-enabled processors.
• Reduces cable clutter with single-network connection and PoE power.
• Quick installation using included ceiling bracket and magnetic grille.
• Engineered for professional AV installations requiring reliability and consistency.

Ideal Applications

• Microsoft Teams and Zoom Rooms
• Boardrooms and collaboration suites
• Classrooms and training spaces
• Multi-room AV environments using Dante audio networks

What’s in the Box

• Yealink CS10-D Dante Ceiling Speaker
• Magnetic paintable grille (white)<
