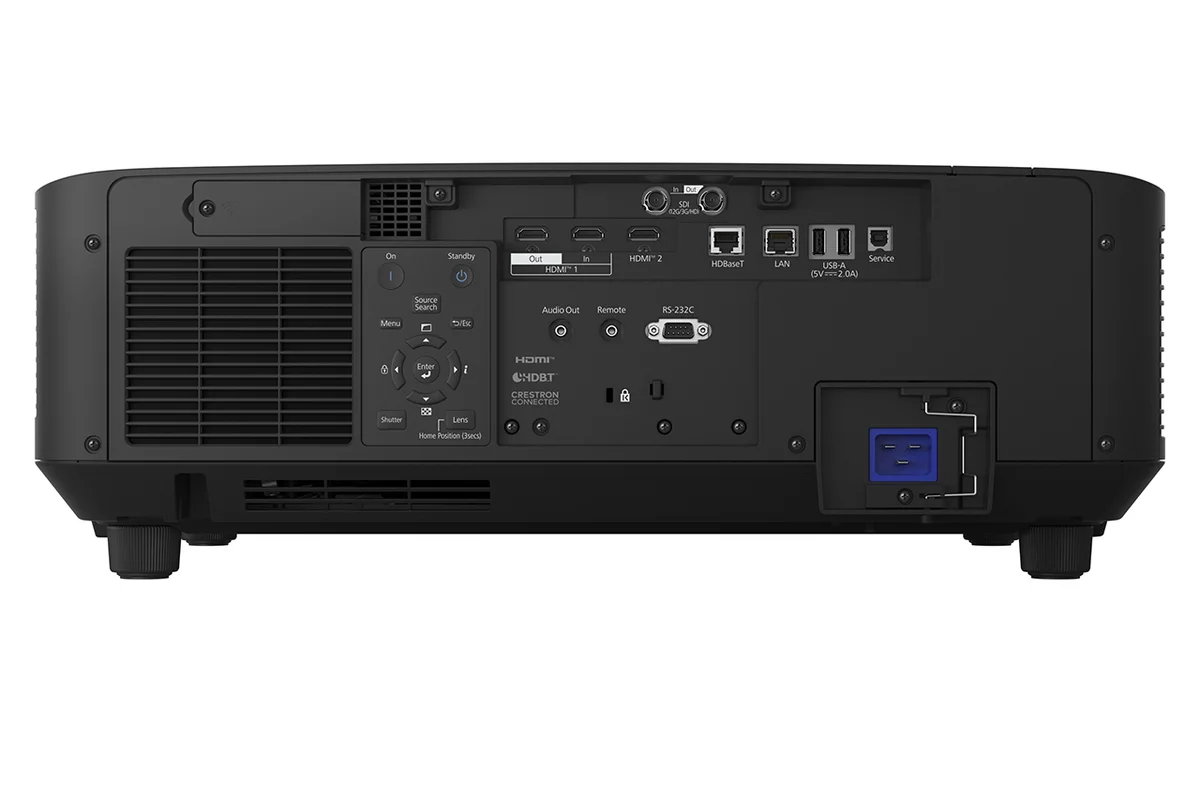

Epson EB-PQ2216B Large Venue Projector (No Lens)

Product Overview

The Epson EB-PQ2216B is a large-venue laser projector producing 16,000 lumens of equal white and colour brightness, with 4K resolution on-screen via 4K Crystal Motion (native 1920 x 1200 panel). Built on Epson 3-chip 3LCD technology, it is intended for fixed installation and live event work — auditoria, lecture theatres, houses of worship, visitor attractions and projection mapping.

Supplied as a body only, the EB-PQ2216B accepts Epson powered lenses so the optic can be specified to the room. A 20,000-hour laser light source, IP5X-rated hermetically sealed optical unit and filterless cabinet keep planned maintenance to a minimum over a long installed life.

Available at Meetingstore.co.uk, a division of 21st Century AV Ltd.

Key Features

• Brightness: 16,000 lumens, equal white and colour light output.
• Resolution: 4k resolution on-screen via 4k crystal motion (native 1920 x 1200 panel).
• Light source: Laser, rated 20,000 hours, virtually maintenance-free.
• Imaging: Epson 3-chip 3LCD for equal white and colour brightness.
• Lens: Body only. Compatible with the Epson powered lens range, with motorised shift, zoom and focus.
• Build: IP5X-rated sealed optical and light source unit, filterless cabinet.
• Connectivity: HDBaseT and 3G-SDI for long cable runs and daisy-chaining.
• Multi-projector: Edge blending, stacking, tiling and screen matching; optional PixAlign camera for automated alignment.

Use Cases

Suited to permanent installation in auditoria, large lecture theatres, worship spaces and visitor attractions, and to rental and staging where output and rigging flexibility matter. Edge blending and stacking allow multiple units to be combined for wide-format or high-brightness projection mapping.

Compatibility Details

Requires an Epson powered lens, sold separately, selected according to throw distance and screen width. Accepts 4K input signals. Compatible with Epson Projector Professional Tool for configuration and monitoring, and with the optional PixAlign camera for stacking, blending and colour calibration.

What’s in the Box

• Epson EB-PQ2216B projector body
• Power cable
• Remote control and batteries
• Quick start guide and documentation

Lens sold separately.
