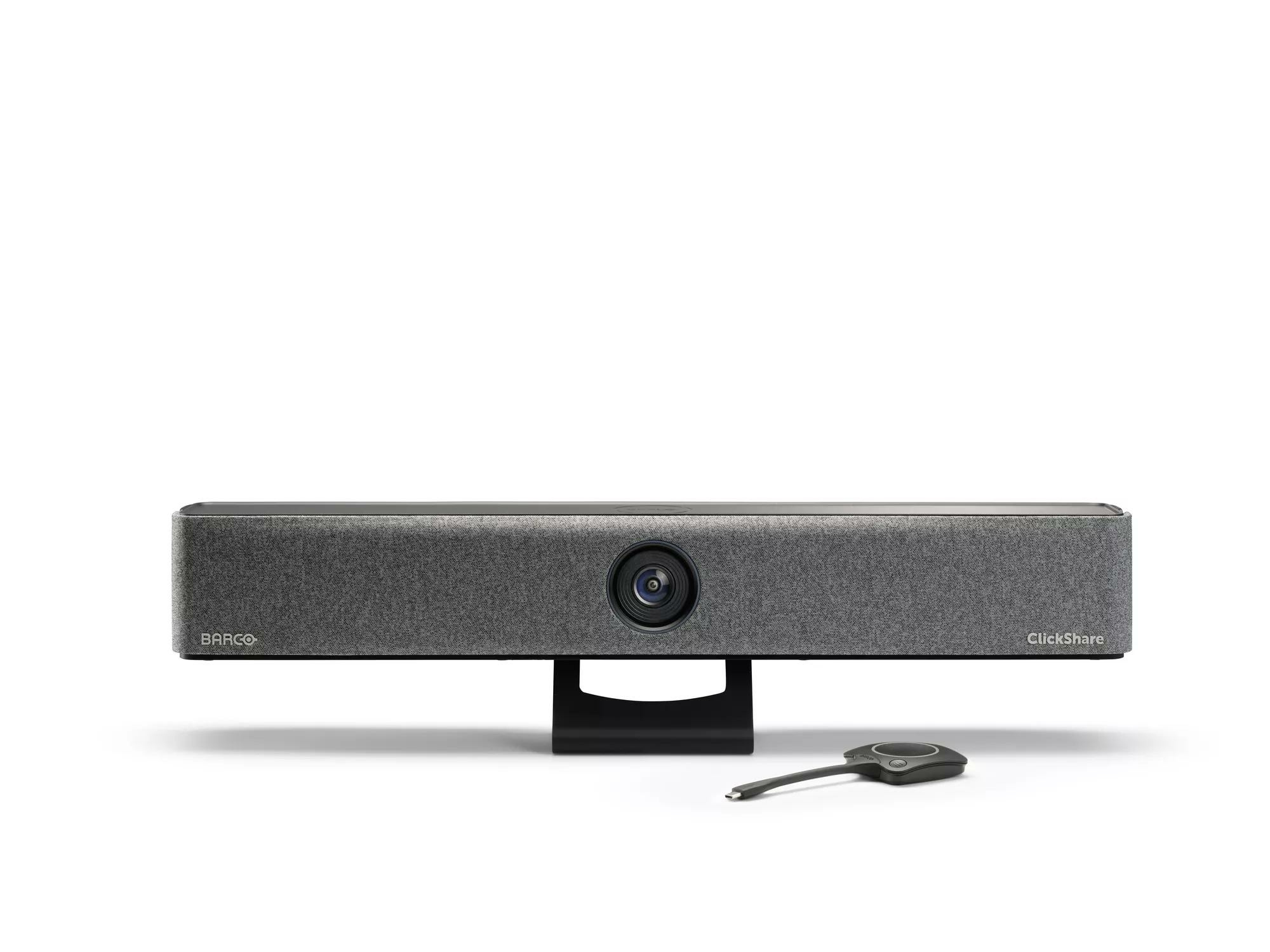

Barco ClickShare Bar Core

General specifications

Operating system

Windows 10 and higher macOS 11 (Ventura) and higher Android v13 and higher (ClickShare App) iOS 16 and higher (ClickShare App)

System requirements

For a smooth experience with Microsoft Teams or Zoom Minimum: Intel i3 dual-core processor / 8GB RAM / OS: Windows 10 latest build or Mac OS Ventura latest build Recommended: Intel i5 4-core processor / 8GB RAM / OS:Windows 11 latest build or Mac OS latest build

Video outputs

4K UHD (3840*2160) @ 30Hz. HDMI 1.4b or USB-C DP ALT mode (DisplayPort 1.2)

Video inputs

–

Camera

4K camera, 3x zoom/ePTZ, 120˚FOV

Camera AI

Group framing and composition mode with up to 4 people

Audio output

2x 10W full duplex and stereo speakers, 8 Ohms impedance (available mid 2024)

Audio pickup

6 beamforming MEMS microphones with echo and background noise cancellation. Pickup range up to 15 feet / 4.5 meters

ClickShare Buttons

1

ClickShare App

Desktop & Mobile

Native protocols

Airplay, Google Cast, Miracast (available mid 2024)

Noise Level

Fanless

Authentication protocol

WPA2-PSK in stand-alone mode WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode

Wireless transmission protocol

IEEE 802.11 a/g/n/ac and IEEE 802.15.1

Reach

Max. 30m (100 ft) between ClickShare Button and ClickShare Bar

Frequency band

2.4 GHZ and 5 GHz (DFS channels supported in select number of countries in network integration mode)

Connections

1x USB-C 3.1 (DP) to screen, 1x USB-A 2.0, 1x Ethernet LAN 1Gbit, 1x USB-C 2.0 (side)

Temperature range

Operating: 0°C to +40°C (+32°F to +104°F) Max: 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to +140°F)

Humidity

Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing

Anti-theft system

Kensington lock (back and bottom)

Certifications

FCC/CE

Touch screen support & Interactivity

No

Wireless conferencing

via App or Button

Local view

Yes

Network connection

LAN & WiFi

Management and reporting

Yes

Warranty

1 year standard. 5 years coverage upon registering via SmartCare
